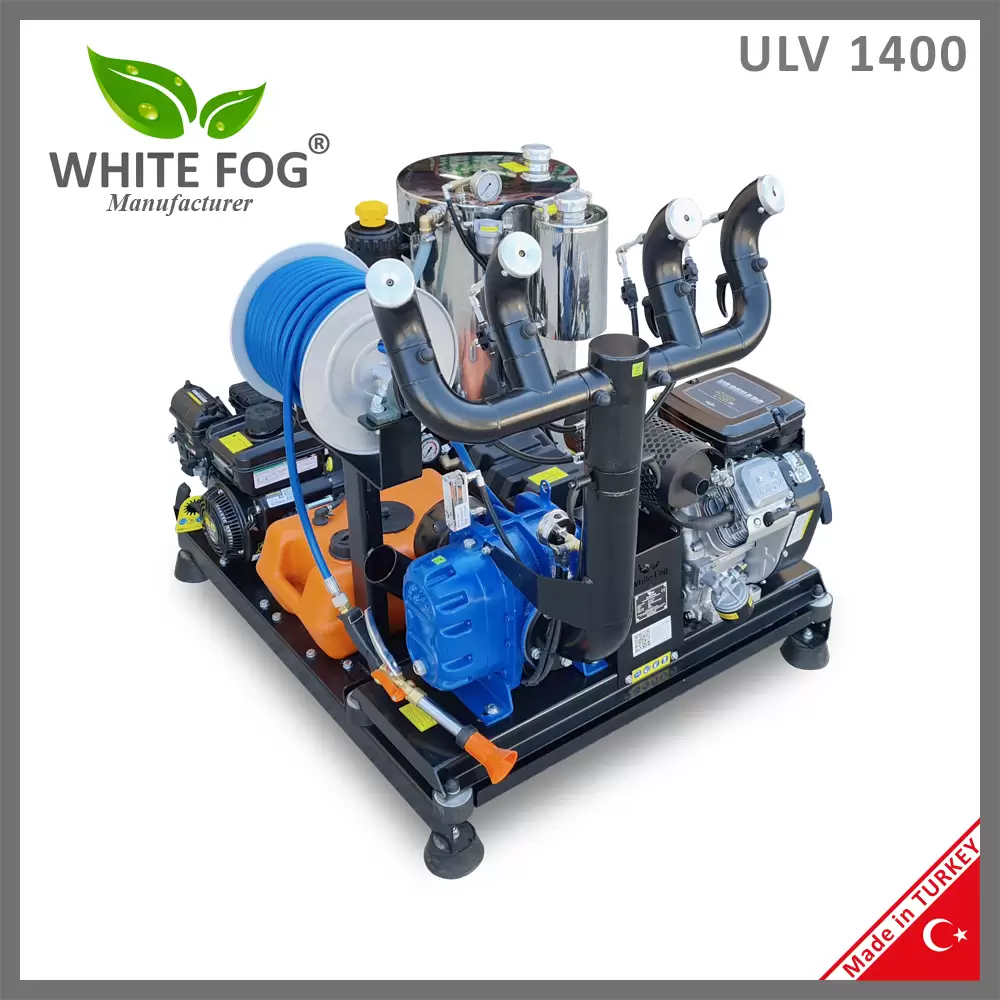

Mist Sprayer and Cold Fogger Machine – ULV 1400

ULV 1400, mist sprayer and cold fogger machine, is a water based vehicle mounted spraying machine. The device is made of highest quality materials and can be used for 4 different purposes: Cold fogging, ULV, Mist spraying, Garden Sprayer.

• Cold Fogger
  Long lasting spraying with droplets between 0 – 30 microns.
• ULV Fogger
  Long lasting spraying with droplets between 30 – 50 microns.
• Mist Spraying:
  Long lasting spraying with droplets between 50 – 100 microns.
• Garden sprayer function
  Long lasting spraying with droplets between 100 – 150 microns.

Distinctive features of ULV1400, Mist sprayer and cold fogging machine:

1. Cold Fogger

Cold fogging with micron particle sizes (0-30µm) is used for combating small-sized pests such as mosquitoes. The water-based cold fogging feature enables a transparent mist, hence doesn’t danger the traffic like thermal fogging. The droplet sizes sprayed are small, similar to thermal fogging devices.  The ULV1400, vehicle-mounted mist sprayer and cold fogger ULV spraying machine, is cost-effective in application as it uses a water-based solution. The formulation tank is filled with water and insecticide formulation, and not with oil-based diesel and insecticide formulation.

Thermal Fogger and Cold Fogger properties are used for different purposes and at different times. Oil-based thermal fogger property can be used under sunlight. The Cold Fogger property is mostly used in the evening when the sun goes down or in the morning when the sun rises.

2. ULV Fogger

The properties of the Cold Fogger and ULV are quite different from each other. They both have different utilization areas. Owing to the micron size of 30-50µm, water-based ULV Fogger performs transparent mist application. The micron sizes are larger compared to the Cold Fogger property. ULV treatment with large micron size is used with larger vectors like houseflies and bugs of equal size. The evaporating effect of the sunlight will cause losses on the sprayed micron size. Operators knowing the specifities of each usage mode, with an application done at the right time with appropriate micron diameter corresponding to the bug size to be fought, obtain better pest control results.

3. Mist Sprayer

Water based Mist Sprayer micron diameters ranges from 50-100µm. Mist spraying is used for combating large-sized pests such as larvae, ticks, or cockroaches, with micron particle sizes ranging from 50-100µm.  Thanks to the special nozzles of the device, all nozzles can turn 45 degrees up, down, left, and right. It performs residual spraying, and can spray a 7-meter-wide road or every square millimeter of children park exposed to acarid, tick attack.

4. Garden Sprayer

It has a two-stage (short and long-range) spraying gun with a 50-meter long hose and the capability to spray with a diameter of (100-150µm). The Garden Sprayer feature can be used for various activities such as systemic effective fly control in areas like slaughterhouses, intense and low-viscosity larva control in water puddles, disinfection of livestocks, animal living areas from viruses and parasites, and disinfection of garbage containers. With this feature, while effective disinfection processes are carried out, the productivity increases, and the labor costs caused by disinfection decreases.

General Information for ULV1400 , Cold Fogging and ULV machine

a. What is a Cold Fogger?

Cold Fogging devices realize water-based spraying activity. The formulation liquid is disintegrated with air pressure. It is not disintegrated with heat like thermal foggers. Therefore, it can spray any fluid liquid and in very small microns. The sprayed particles containing insecticide ranges between 0-30µm micron. The greatest feature of cold fogging spraying systems is their ability to perform spraying in very small micron sizes. As a result, the sprayed particles can be carried over long distances. Thanks to their small micron diameter feature, cold fogging spraying machines used for biocidal control against mosquitoes are as effective as Thermal fogging machines.

b. What is a ULV Fogger?

ULV Fogger devices are systems that perform water-based applications like Cold Fogging devices. However, the difference between ULV spraying machines and cold fogging machines lies in the size of the micron diameter of the sprayed particles. For example, a cold fogging machine (0-30µm) is used for mosquito control, while a ULV spraying machine (30-50µm) is more effective for fly control.
