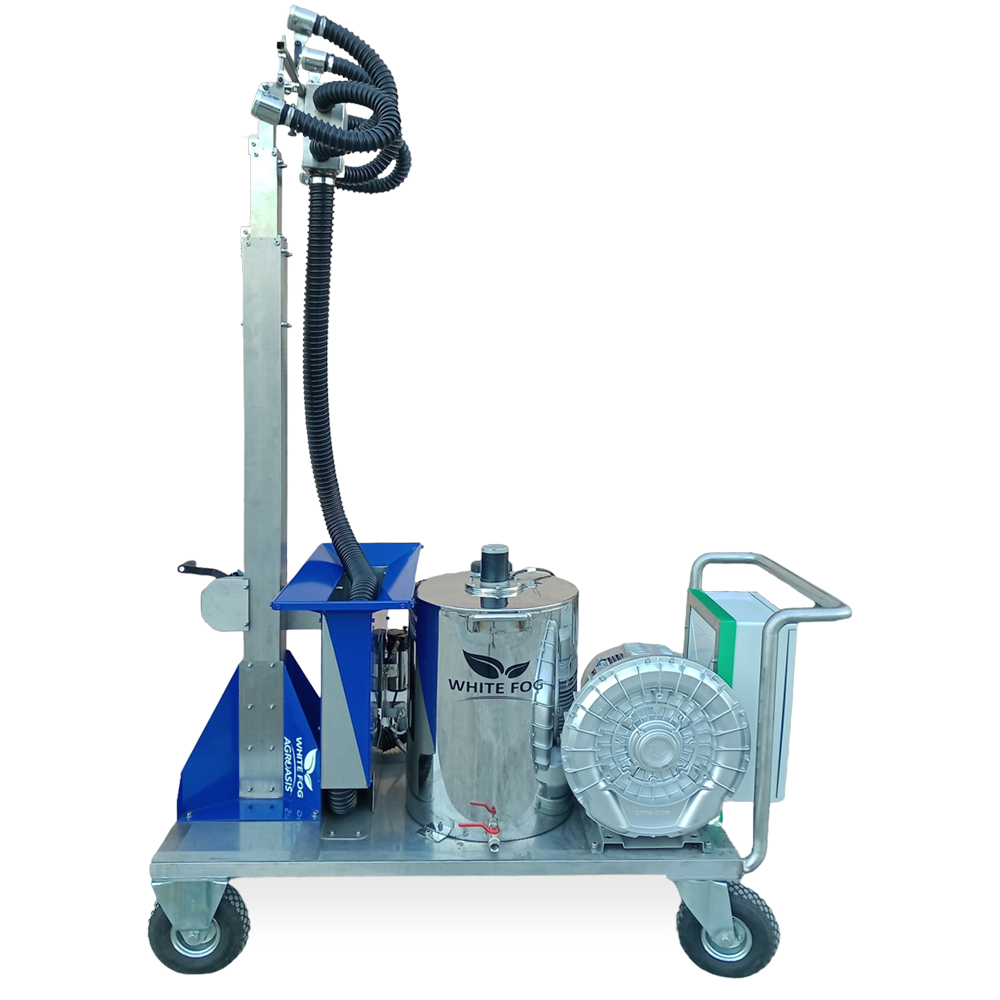

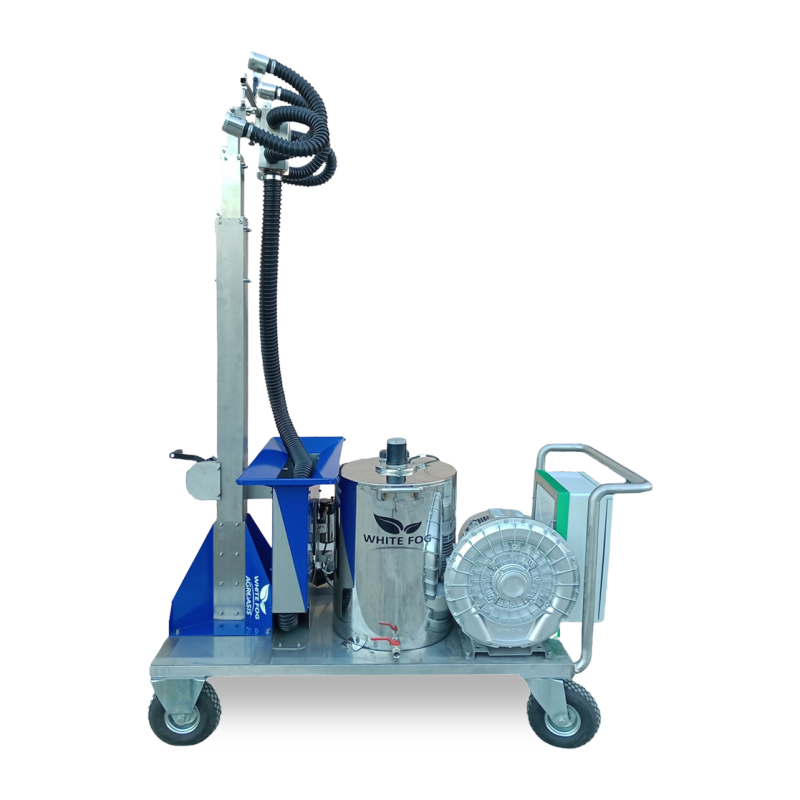

Fog Guard Pro

Greenhouse and Warehouse Spraying Machine

Designed for spraying in areas such as GREENHOUSES and WAREHOUSES. This model features a nozzle extendable up to 4.3 meters, with an effective reach of at least 130 meters

Category: ULV Cold Foggers

Description

Fog Guard Pro is an electric cold fogging and ULV machine that performs water-based spraying. The machine atomizes the liquid into very fine particles (10–50 microns) using high air pressure. The sprayed droplets reach distances of 130 meters and beyond, providing great ease for spraying large areas.

The main feature that distinguishes Fog Guard Pro from other cold fogging machines is its adjustable height (1.95m – 4.30m) according to need. Since the entire free airspace above the area is utilized, the fog is distributed without obstruction to every part of the treatment area.

Usage Areas:
Used for disinfection and pest control in warehouses, production facilities, and large open areas.

Difference from sprayers and other ULV spraying machines:
✔Cold fogging machines provide spraying at least 100 times faster, easier, and more effectively compared to sprayers. They save both costs and time. Pests neutralized in one go do not require frequent and periodic spraying as with other methods.
✔ As a cold fogging machine, FOG GUARD PRO sprays particles sized 10–50 microns; conventinal sprayers typically spray droplets larger than 100 microns. Larger droplets fall to the ground faster, and 100 liters of liquid is divided into fewer particles, resulting in uneven coverage. According to the World Health Organization:

1 ml of liquid at 100 micron droplet size produces approximately 1.91 million droplets.
1 ml of liquid at 20 micron droplet size produces approximately 239 million droplets.

✔ With FOG GUARD PRO, spraying 1 decare (1000 m²) takes only 1 minute. Since the liquid is applied as mist, the particles do not fall to the ground and be wasted, they penetrate every corner of the warehouse, and achieves maximum effect. In short, compared to sprayers, it provides spraying at least 100 times faster and more effectively.

Key Features
✔ Electric and Environmentally Friendly: Operates without fuel consumption, zero carbon emissions.
✔ 360° Coverage: The nozzle can be aimed in any direction for more precise and effective spraying.
✔ Adjustable Telescopic Nozzle: Enables spraying from above.
✔ High Air Velocity (187 m/s): Extends fogging reach to distant areas, up to 130 meters.
✔ Large Chemical Capacity (100 L): Allows long, uninterrupted operation.
✔ Low Noise Level (92 dB(A))
✔ Smart Control and Automation: Remote control and blutooth timer enable ease of use. The operator can spray without direct exposure to chemicals.

Optional Features
✔ Remote Control: Allows the user to operate the machine remotely, minimizing chemical exposure for the operator during spraying.
✔ Automatic Cleaning Tank: Facilitates easy cleaning after chemical changes or usage.
✔ Automatic Timer: Can be programmed to start fogging automatically at night. Thanks to Bluetooth control, Fog Guard Pro can operate fully automatically, enabling effortless fogging even during nighttime hours. Automatic functions include: 1) Engine start/stop and spraying, 2) Mixer on/off, 3) Cleaning tank on/off (Cleaning tank is an optional feature).
✔ Dual-Lobe Roots Blower: Extra powerful air pump enabling spray distances of 130 meters and beyond.

Frequently Asked Questions ;

What should be considered when purchasing a spraying machine?

When purchasing a spraying machine, the primary criterion is the uninterrupted continuation of periodic spraying activities. For example, mosquito control is generally carried out in 8-day cycles, and during this period, daily spraying must be done regularly considering the larval stage. Since the exact timing of larval deposition from previous mosquitoes cannot be known, the entire population is controlled by daily spraying for the first 8 days. Then, control is maintained with repeated periodic spraying every 8 days. This approach ensures significant savings in biocidal chemical consumption, effectively controlling the entire population.

However, if the spraying machine frequently breaks down, this routine is disrupted, and spraying activities must be restarted daily from scratch. This causes significant losses in both time and chemical costs.

Therefore, when choosing a spraying machine, instead of focusing solely on price-performance ratio; robust, durable, low-risk of break, simple, and purpose-appropriate machines should be preferred. Additionally, purchasing from manufacturers with a proven track record of easily and promptly supplying spare parts and providing after-sales support will be far more efficient in the long run.

In biocidal control, spraying machines are typically purchased once and used for about 10 years. However, biocidal chemicals must be regularly supplied every season for many years. Therefore, the correct equipment choice directly impacts chemical costs in the long term. To save on chemical use and conduct effective control, machines that can spray chemicals at the micron size most suitable for the target pest, have minimal risk of breakdown, and are made with quality components should be preferred. Such machines provide significant savings in labor, time, and chemical consumption, yielding successful biocidal control results in the long term.

What should be the droplet size according to the target pest?

For the control of small flying insects like mosquitoes, the World Health Organization (WHO) has set a standard that the diameter of particles sprayed using the cold fogging method should be at most 20 microns (µm). The main purpose of this approach is to prolong the suspension time of sprayed droplets in the air, to increase their drift distance, and enhance the likelihood of effective biocidal particles reaching the target pests through contact.

For controlling black flies and other medium-sized insects, the WHO recommends using droplets of 30 microns (µm) in diameter via the ultra-low volume (ULV) spraying method. This method ensures the appropriate dosage of insecticide reaching the target flies effectively and eliminating medium size insects.

In the case of large pests such as locusts, ticks, and stink bugs, sprayed particle diameters should range between 50-100 microns (µm) using the Mist Blower method. This allows the application of biocidal chemicals in sufficient doses by matching the droplet size to the pest’s physical size, producing effective results. There are two main reasons for preferring droplet sizes of 50-100 microns (µm) in Mist Blower applications:

✔ Larger droplets are needed to effectively neutralize larger sized insects,
✔ In contact or systemic based spraying activity, to prevent the excessive drift of droplets in the wind. With Mist Blower method, insecticide can travel up to approximately 30 meters and settles within 90 seconds; reaching the ground as large droplets. Thus, even if a month passes after application, insects consuming insecticide residues on the ground are eliminated through residual effects.

This method is ideal for source control of large pests such as larvae, ticks, and cockroaches found in parks, gardens, garbage areas, water channels, and residential surroundings.

For the control of larvae, bacteria, and parasites, the Garden Sprayer method, which uses droplet sizes between 100-300 microns (µm), and systemic (residual) insecticides should be preferred. The machine is equipped with a 50-meter hose gun, allowing both short and long-range spraying. This enables effective spraying and disinfection applications in various areas and conditions. When the garden sprayer mode is activated, sprayed droplet diameters range between 100 and 300 microns. This feature offers a wide application scope, from systemic fly control in slaughterhouses to larval control in water paddles. It is also successfully used in disinfecting animal habitats from viruses and parasites, and effectively sanitizing garbage containers.

For successful and effective biocidal control, selecting appropriate particle sizes according to the pest species and strictly adhering to the application criteria set by the World Health Organization is essential. The WHO guide titled “A practitioner’s guide” provides detailed spraying criteria. Consulting expert specialists also contributes to successful biocidal control.

Incorrect micron sizes and non-compliant applications lead to failure in pest control, unnecessary loss of time, and wasted chemicals.

How should biocidal control be conducted?

Wind direction, wind speed, air temperature, high pressure, low pressure, and other atmospheric conditions directly affect spraying activities. In this context, detailed spraying criteria can be found in the World Health Organization (WHO) guide titled “A practitioner’s guide.” Additionally, consulting expert specialists in the field will ensure successful biocidal control.

What is the criterion for cold fogging?

The cold fogging method is defined by the World Health Organization with a droplet size range of 0-30 microns (µm). In this method, the chemical substance in liquid form is sprayed as droplets sized 0-30 microns (µm). It is called “cold” because the process involves spraying as fog without using heat, by exposing the liquid to high air flow through a vortical type nozzle.

What is the ULV criterion?

The U.L.V. (Ultra Low Volume) method is defined by the World Health Organization with a droplet size range of 30-50 microns (µm). In this method, the chemical substance in liquid form is sprayed as droplets sized 30-50 microns (µm). The liquid is sprayed at low volume without using heat, by exposing it to high air flow through a vortical type nozzle. The term Ultra Low Volume has been adopted in the literature as “low volume spraying.”

What is the Mist Blower criterion?

The Mist Blower method is defined by the World Health Organization with a droplet size range of 50-100 microns (µm). In this method, the chemical substance in liquid form is sprayed as droplets sized 50-100 microns (µm). The liquid is sprayed at high volume without using heat. The term Mist Blower has been adopted in the literature as “high volume spraying.”

What is the Garden Sprayer criterion?

The Garden Sprayer method is defined by the World Health Organization with a droplet size range of 100-300 microns (µm). In this method, the chemical substance in liquid form is sprayed as droplets sized 100-300 microns (µm). The liquid is sprayed at high volume without using heat. The term Garden Sprayer has been adopted in the literature as “handgun spraying.”

What is the Thermal Fogging criterion?

The Thermal Fogging method is defined by the World Health Organization with a droplet size range of 1-100 microns (µm). In this method, the chemical substance in liquid form is sprayed as droplets sized 1-100 microns (µm). The liquid chemical is vaporized at a high temperature (400°C) and then sprayed as a dense fog (aerosol) cloud when it comes into contact with cold air. The sprayed particles are not transparent like in water-based spraying but appear as dense white smoke. The thermal fogging method does not burn the chemical or reduce its effectiveness. On the contrary, it provides an application that is 12 times more effective and efficient compared to water-based spraying. But because it obstructs visibility in traffic, its use on highways requires permission from local authorities. However, it is not subject to permission in private properties, rural areas, and residential neighborhoods. The term Thermal Fogging is known in the literature as “oil-based spraying.”

Technical Information

Additional information

Engine	5.5 kW, 3 phase, 360V – 500V AC, 50-60Hz
Pump	Side channel type air blower
Nozzle	4 nozzles, 360°
Spray Droplet Size	15 or 30 µm sizes. (Adjustable from 15 to 30 µm in different sizes with flow rate)
Chemical Tank	100 L, stainless steel
Chemical Consumption	40~73 L/h (Advised consumption is 40 L/h for cold fogging)
Telescopic Mast	1.70~4.5 m height (Adjustable)
Air Velocity At Nozzle	187 m/s
Noise Level	92 dB(A)
Weight	Empty 175 Kg, Full 275 Kg, Shipping weight 320 Kg
Dimensions	76x160x170 cm, Shipping dimensions 82x166x184 cm (W,L,H)
Extra Options	Remote control, cleaning tank, timer for automatic start
Origin	Made in Turkey
Warranty	2 years
MOQ	1 unit
